Precision 27 Navigation and Electrical Panel
Precision 27 Navigation and Electrical Panel

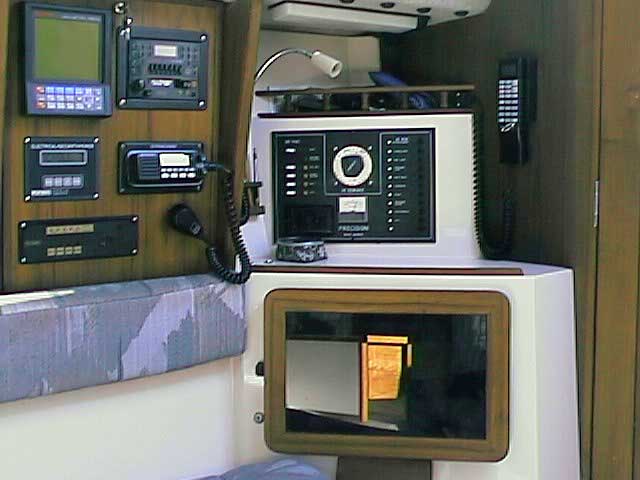

Navigational & electrical panal, made from Precision's book shelf. All fastners and hinges are concealed except the lock. The entire panal removes, electronics attached, for winter storage. The Raytheon radar is concealed behind the smoked glass of the navigation table. We rebuilt the table dropping the interior approximately 2 inches to permit the radar face to be countersunk behind the table surface. The black knob on the left rotates to pop off the smoked glass for access to the radar. The navigation table still swings out for writing as originally designed. The electrical panel shares a common wall with the cabinets to the left.

Bill Bowen's Precision 27
